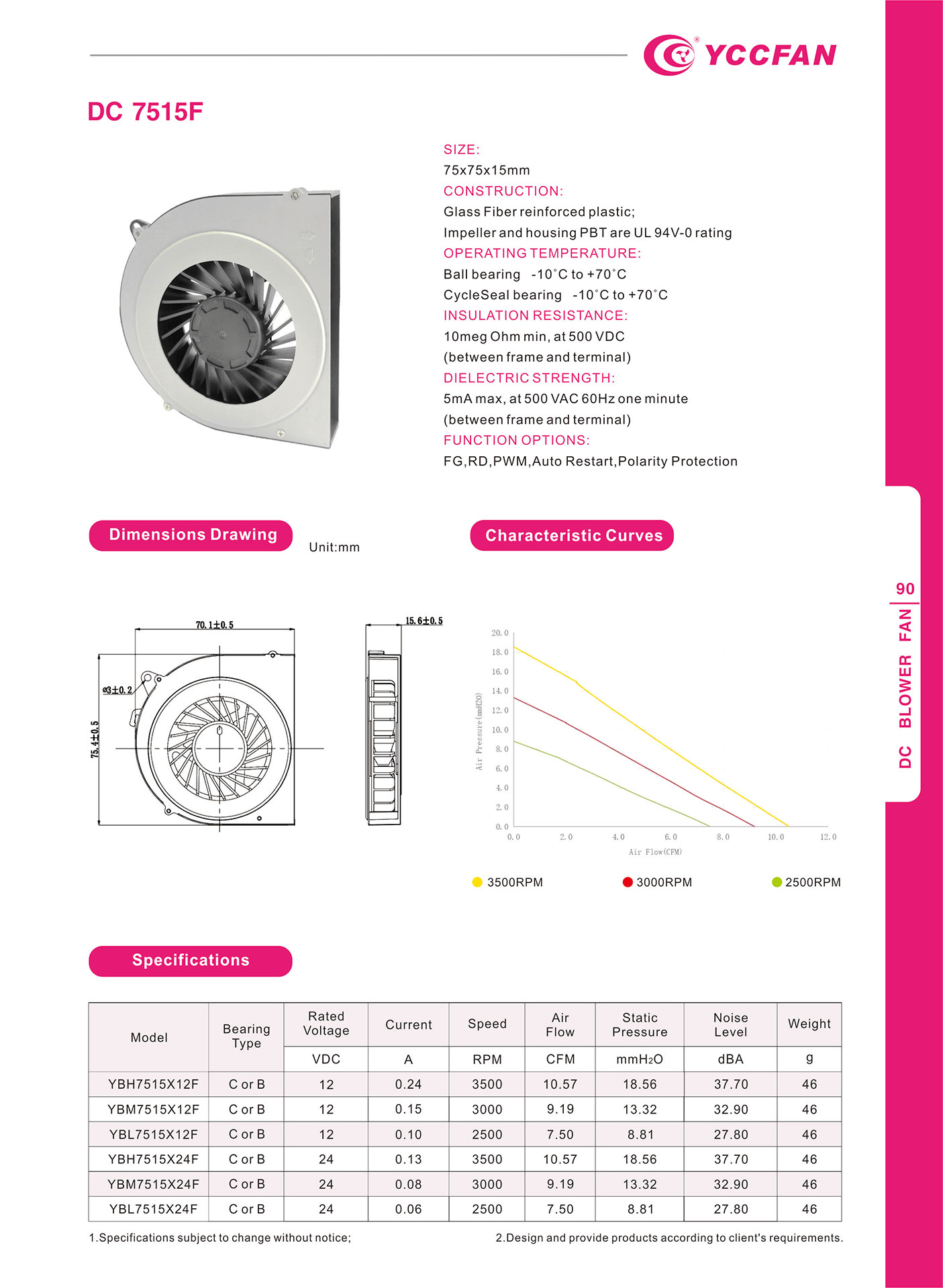

产品描述
Product Description
SIZE:75x75x15mm
CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating
OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃
INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)
DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)
FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection
尺寸图
Dimensions Drawing
特征曲线
Characteristic Curves
规格参数
Specifications
| SIZE (mm) | MODEL | Bearing(X) | Voltage | Testing Current | SPEED (RPM) | AIR FLOW (CFM) | PRESSURE (mmAq) | NOISE (dBA) | W (g) |
| B7515F | YBH7515X12F | C or B | 12 | 0.24 | 3500 | 10.57 | 18.56 | 37.70 | 46 |
| YBM7515X12F | 0.15 | 3000 | 9.19 | 13.32 | 32.90 | 46 | |||
| YBL7515X12F | 0.10 | 2500 | 7.50 | 8.81 | 27.80 | 46 | |||
| YBH7515X24F | 24 | 0.13 | 3500 | 10.57 | 18.56 | 37.70 | 46 | ||
| YBM7515X24F | 0.08 | 3000 | 9.19 | 13.32 | 32.90 | 46 | |||
| YBL7515X24F | 0.06 | 2500 | 7.50 | 8.81 | 27.80 | 46 |
1.Specifications subject to change without notiec;
2.Design and provide products according to client’s requirements.
