产品描述

Product Description

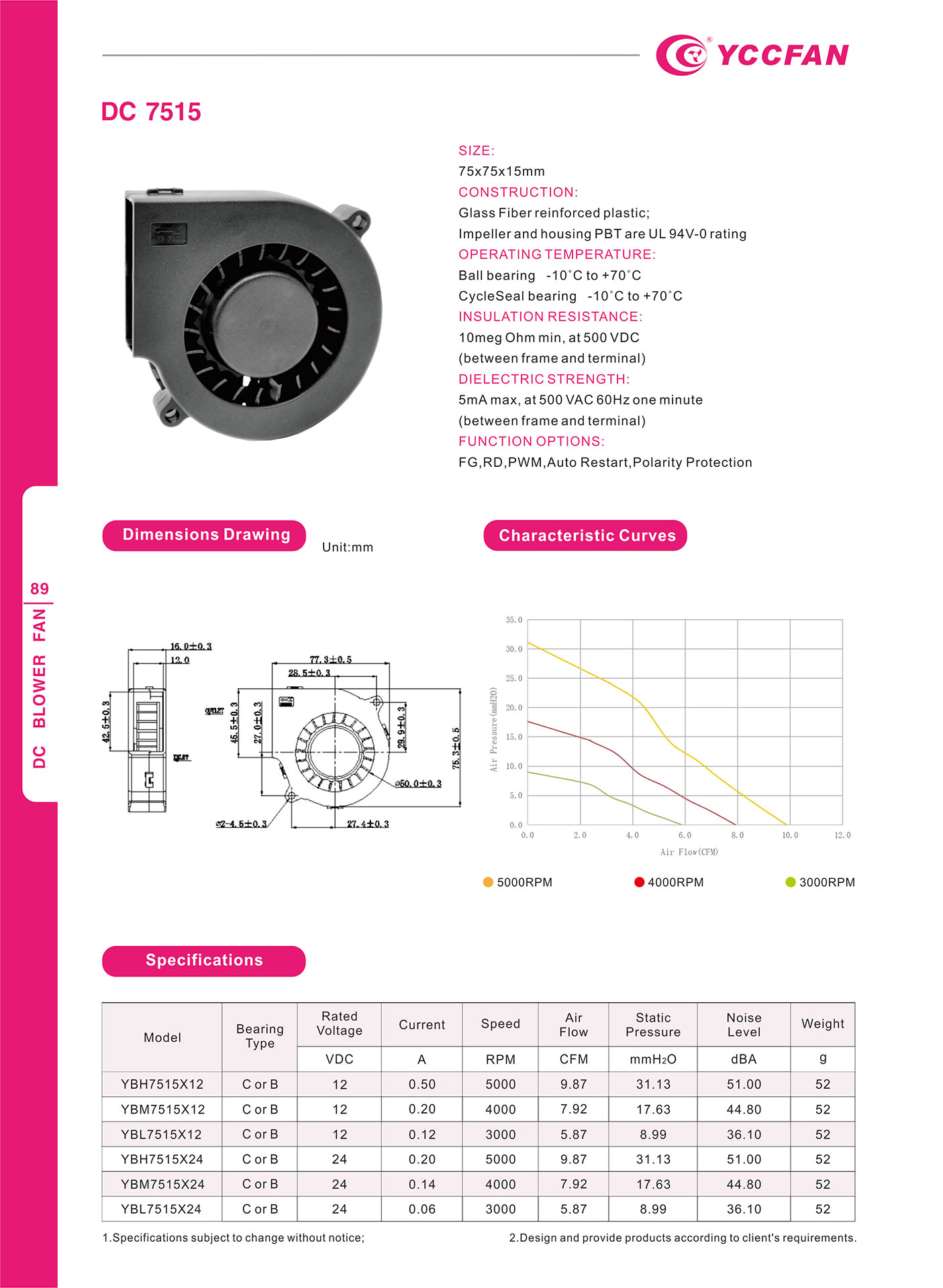

SIZE:75x75x15mm

CONSTRUCTION:Glass Fiber reinforced plastic: Impeller and housing PBT are UL 94V-0 rating

OPERATING TEMPERATURE:Ball bearing -10℃ to +70℃;Sleeve bearing -10℃ to +60℃

INSULATION RESISTANCE:10meg Ohm min, at 500 VDC(between frame and terminal)

DIELECTRIC STRENGTH:5mA max, at 500 VAC 60Hz one minute(between frame and terminal)

FUNCTION OPTIONS:FG,RD, PWM,Auto Restart, Polarity Protection

尺寸图

Dimensions Drawing

特征曲线

Characteristic Curves

 规格参数

Specifications
ModelBearing
Type
Rated
Voltage
CurrentSpeedAir
Flow
Static
Pressure
Noise
Level
Weight
VDCARPMCFMmmHzOdBAg
YBH7515X12S or B120.50500010.5423.0347.4052
YBM7515X12S or B120.2040008.4314.7442.5052
YBL7515X12S or B120.1230006.328.2936.3052
YBH7515X24S or B240.20500010.5423.0347.4052
YBM7515X24S or B240.1440008.4314.7442.5052
YBL7515X24S or B240.0630006.328.2936.3052

1.Specifications subject to change without notiec;

2.Design and provide products according to client’s requirements.
